OMNISIGHT PRODUCT
Our FusionSensor combines HD3D Radar with HD Video to accurately detect, track, and classify road and rail users including vehicles, pedestrians, and bicycles. TrueEdge processing means no controller or processing units are required. With an on-board cellular modem, minimum infrastructure requires only power. This device is managed and updated OTA (over-the-air) using our online device portal, making installation and maintenance a breeze.
USE CASES
Turning movement counts, before/after evaluations, and signal timing studies for state DOTs and engineering firms.

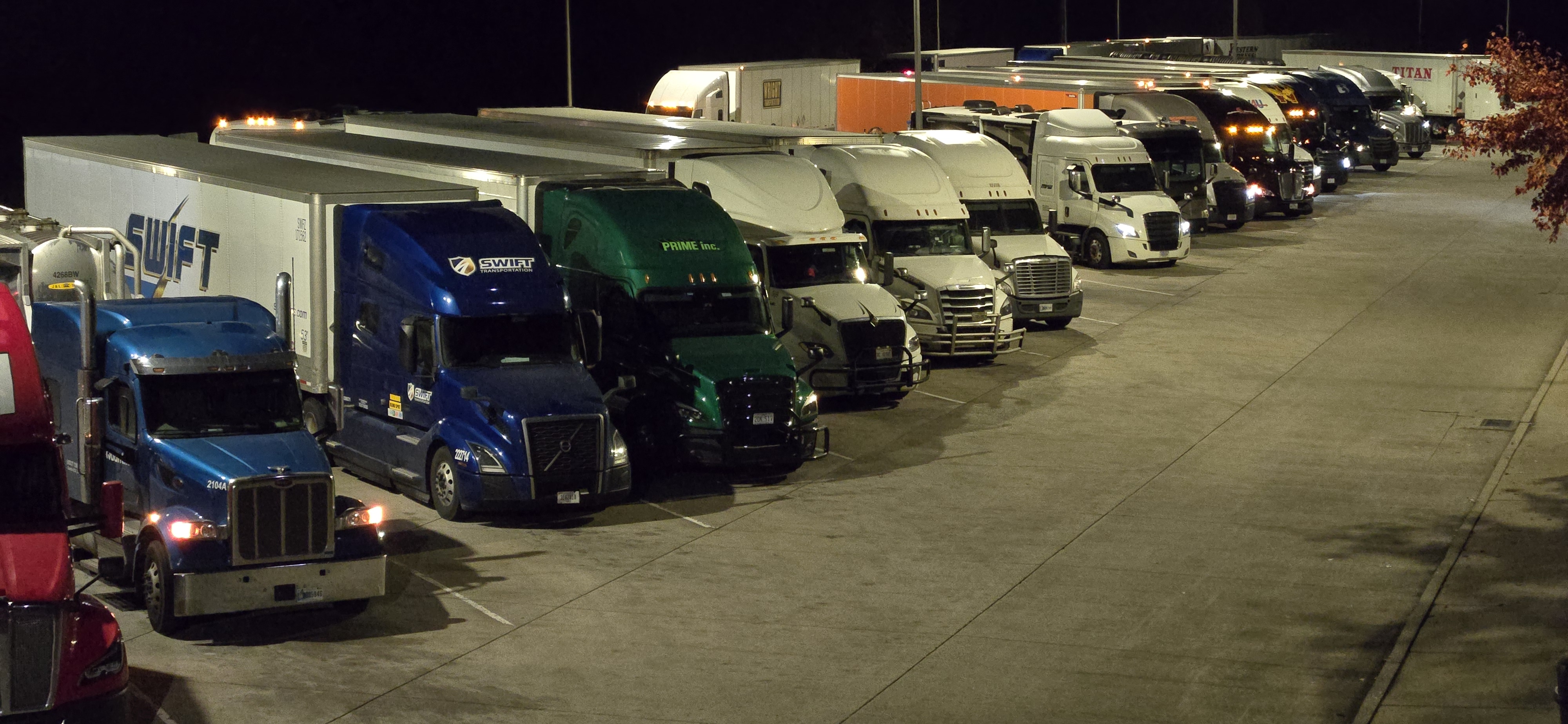

Real-time truck parking, lot occupancy, and event parking detection through every weather condition.
Live-traffic-responsive signal optimization for urban intersections and emergency vehicle priority.
AI-powered onramp control reading mainline congestion to smooth freeway merges and reduce crashes.
FusionBLADE intrusion detection, speed monitoring, and TMA-aware alarms for highway crew safety.
Speed monitoring, adaptive crosswalk timing, and V2X alerts that protect students around schools.
HD3D radar plus AI vision detects wrong-way drivers with effectively zero false positives.
Sub-second alerts for stalled vehicles, debris, intrusions, and wrong-way drivers on highways and tunnels.
Pedestrian and cyclist data aligned with Vision Zero action plans and safer-streets initiatives.
98.7% accuracy pedestrian counts for transit, Vision Zero, and event crowd density monitoring.
13-class FHWA counts, speeds, and headways via JSON, XML, NTCIP, SDLC, and MS2 to ATMS and TMC.
Connected AI traffic infrastructure unifying signals, parking, work zones, school zones, and safety.
CORE TECHNOLOGY
HD3D RADAR
Our HD3D radar is accurate enough to sense a human heartbeat. Unlike traditional HD or UHD radar, our radar forms dense point clouds that can be used for count, classification, direction, speed, and occupancy detection, in any weather, day or night.
HD VIDEO
AI-enabled HD Video provides unmatched classification capabilities, from vehicle class to pedestrian intent. Video inference results are combined with our dense radar point clouds 20 times per second for sub-second detection accuracy.
WHY FUSIONSENSOR
Omnisight's TrueEdge technology means the processing occurs on the device itself. We seamlessly integrate raw data from our sensors in real-time.
FusionSensor is managed entirely online through the Omnisight Dashboard. With firmware that can be updated online from anywhere, there's no need to take the device down for updates.
Customize your data however you like. With all processing done locally, your data has the freedom to be sent to any servers or software of your choosing.
FusionSensor requires just 20 watts of power to perform, so it can integrate seamlessly into any system without the worry of excessive power consumption.
Powered by either a PoE connection or a barrel jack, the FusionSensor is a breeze to install in any community, no matter the existing infrastructure.
TECHNICAL SPECS
4 × 5.85 × 1 inches (W×H×D)
102 × 148.7 × 25.6 mm (W×H×D)
1.72 lbs (780g)
100BaseT Ethernet
2.4 GHz Wireless (FUSE-ANT only)
LTE Cellular (FUSE-SIM only)
Bluetooth 5.0
Dedicated hardware acceleration for radar
Dedicated hardware acceleration for video analytics
Up to 8 GB RAM
Up to 1 TB onboard storage
HD3D Radar
1080p HD Camera
IP66 with CAT-6 cable connected properly
NEMA4 compliant
–30°C to 75°C
PoE 802.3at/bt, 30W max
98.7% detection and classification accuracy
120° field of view, up to 6 lanes
Radar and vision fused 20 times per second
Vehicles, pedestrians, and cyclists, with FHWA classification
JSON, XML, and binary streaming
NTCIP, SDLC, and MS2 for controllers and ATMS
Contact Closure for legacy cabinets
Direct integration, no middleware required
DOWNLOADS
FusionSensor v5 datasheet: full product overview, specs, and integration details.
DOWNLOAD →
Detailed CAD drawing showing dimensions for the LTE cellular FusionSensor variant.
DOWNLOAD →
Detailed CAD drawing showing dimensions for the standard FusionSensor.
DOWNLOAD →
CAD drawing of a typical FusionSensor mounting on a vertical pole.
DOWNLOAD →
CAD drawing of a typical FusionSensor mounting on a mast arm.
DOWNLOAD →
Talk to an Omnisight engineer about deploying FusionSensor on your corridor, intersection, work zone, or parking facility, we'll map the hardware to your project.
Contact UsA roadside traffic sensor that fuses HD3D radar with a 1080p AI camera in one 1.72 pound device. It counts, classifies, and tracks vehicles, pedestrians, and cyclists, and runs multiple applications like parking and incident detection at the same time.
Radar measures presence, speed, and direction in any weather but cannot tell what the object is. A camera identifies objects but degrades at night and in rain and fog. FusionSensor runs both and fuses the readings 20 times per second, so each technology covers the other's blind spot.
In under an hour, on poles, mast arms, or rooftops at 8 to 30 feet, using a VESA 75x75 mount and a single CAT6 cable carrying both power and data.
12 to 15 watts on average over PoE 802.3at or 802.3bt, 30 watts maximum. No separate compute box or controller cabinet hardware is required.
JSON, XML, NTCIP, SDLC, MS2, and binary over 100BaseT Ethernet, LTE, or wireless, streaming directly to traffic controllers, ATMS platforms, and dashboards.
Yes. It is IP66 and NEMA 4 rated, operates from minus 30 to plus 75 Celsius, and its radar-first architecture keeps detecting when cameras alone go blind.
