FUSION SENSOR

Our Fusion Sensor combines HD3D Radar with HD Video to accurately detect, track, and classify road and rail users including vehicles, pedestrians, and bicycles. TrueEdge processing means no controller or processing units are required.  With an on-board cellular modem, minimum infrastructure requires only power.  This device is managed and updated OTA (over-the-air) using our online device portal, making installation and maintenance a breeze.

Fusion Sensor - White no shadow - 850h

HD3D RADAR

Our HD3D radar is accurate enough to sense a human heartbeat.  Unlike traditional HD or UHD radar, our radar forms dense point clouds that can be used for count, classification, direction, speed, and occupancy detection.

HD VIDEO

Al-enabled HD Video provides unmatched classification capabilities. Video interference results are combined with our dense radar point clouds 20 times per second.

Replace your whole array of sensors and cameras with just one device

TrueEdge Technology
Omnisight's TrueEdge technology means the processing occurs on the device itself. We seamlessly integrate raw data from our sensors in real-time.
Wireless Updates
Fusion Sensor is managed entirely online through the Omnisight Dashboard. With firmware that can be updated online from anywhere, there's no need to take the device down for updates.
Seamless Integration & Data Flexibility
Customize your data however you like. With all processing done locally, your data has the freedom to be sent to any servers or software of your choosing.
Low Power Consumption
Fusion Sensor requiring just 20 watts of power to perform, so it can integrate seamlessly into any system without the worry of excessive power consumption.
Easy Installation
Powered by either a PoE connection or a barrel jack, the Fusion Sensor is a breeze to install in any community, no matter the existing infrastructure.

TECHNICAL SPECS

TABLE OF CONTENTS
loading...

Dimensions

4 x 5.85 x 1 inches (WxHxD)

102 x 148.7 x 25.6 mm (WxHxD)

1.72 lbs (780g)



Communications

100BaseT ethernet

2.4 Gzh Wireless (FUSE-ANT only)

LTE Cellular (FUSE-SIM only)

Bluetooth 5.0



Circuits

Dedicated hardware acceleration for radar

Dedicated hardware acceleration for video analytics

Up to 8GB RAM

Up to 1TB onboard storage



Sensors

HD3D Radar

1080p HD Camera



Environmental Ratings

IP66 with CAT-6 cable connected properly

NEMA4 compliant

-30 C to 75 C



Power

PoE 802.3at/bt, 30W max



DOWNLOADS

FUSE-V5 Datasheet

Fusion Sensor v5 Datasheet

Download

FUSE-SIM-V5 CAD Drawing

Detailed CAD drawing showing dimensions

Download

FUSE-V5 CAD Drawing

Detailed CAD drawing showing dimensions

Download

Airport Case Study

Case study of Fusion Sensor being used for an airport case study

Download

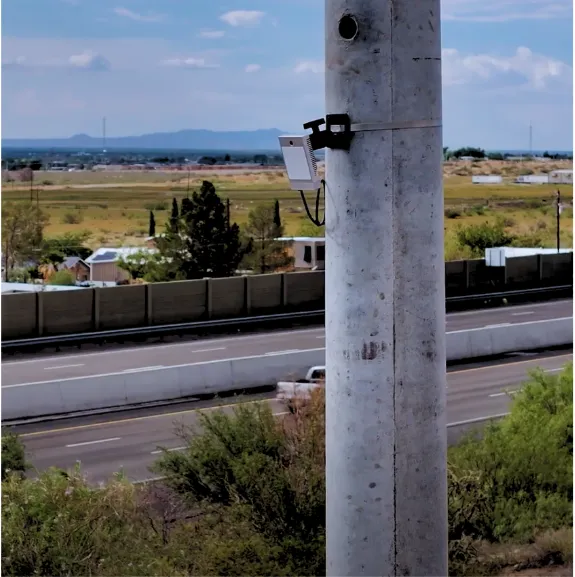

Pole Mounted CAD Drawing

CAD Drawing of a typical mounting on a vertical pole

Download

Mast Arm Mounted CAD Drawing

CAD Drawing of a typical mounting on a mast arm

Download
